ST/SR-1W2A2C-x
1 Video (10-bit, 7MHz), 2 Audio (24-bit), 2 Contact Closure
Features
- 10Hz to 20KHz audio bandwidth
- Greater than 90dB SNR for superb audio quality
- User-selectible, Contact Mapping (N.O, N.C)
Signal Specifications
1 × Composite Video - 10 Bit (W)
| Format | NTSC,PAL,SECAM |
|---|
| Voltage/Impedance | 1 Vp-p,75 Ω,1.5 Vp-p max. |
|---|
| Bandwidth | 5 Hz to 6.8 MHz @ -3 dB |
|---|
| Differential Gain | <0.6% |
|---|
| Differential Phase | <0.3° |
|---|
| SNR | >67 dB (weighted)* |
|---|
| Return Loss | >30 dB |
|---|
| Field Tilt | <0.5% |
|---|

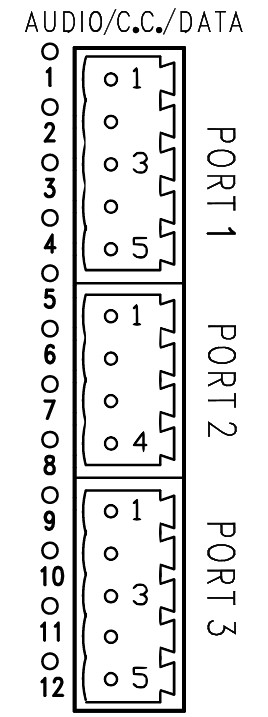

2 × Audio (A)
| I/O Impedance | 600 Ohms (Bal./Un Bal.) |
|---|
| Frequency Responce | 10 Hz to 20 KHz |
|---|
| SNR | >90dB (Weighted)@ 1 KHz |
|---|
| In/Out Level | -8 to +8 dBm(4Vp-p max.) (+18 dBm optional) |
|---|
| THD | <0.01% @ 1KHz |
|---|
| Resolution | 24 Bit |
|---|
2 × Contact Closure (C)
| Format | Normally Open (N.O.) or Normally Closed (N.C.) - jumper selectable |
|---|
| Rate | 10 Hz.(Per Channel) |
|---|
| Contact Rating | 0.3A, 30V AC / DC |
|---|
| Contact Bounce Time | 5 ms |
|---|
Indicators
Composite Video - 10 Bit
| Bi-color | Video Present/Overload |
|---|
| Green | Sync. Present |
|---|
Audio
| Red | Audio Overload |
|---|
| Green | Audio Present |
|---|
Contact Closure
| Green | Contact Closure Present |
|---|
Physical
| Dimensions | 20 (W) x 127 (H) x 160 (D) mm (0.8 x 5.0 x 6.3 inch) |
|---|
| Weight | 450 gms (16 Oz) |
|---|
| No. of Slots | 2 |
|---|
Environmental
| Operating Temperature | -34°C to +70°C |
|---|
| Storage Temperature | -55°C to +80°C |
|---|
| Relative Humidity | 0 to 95% Non-condensing |
|---|
Quality
MTBF >170,000 hours @ Ground Fix 35 °C per MIL217F
Optical Specifications & Ordering
| Part number | Code | Fiber type | Wavelength |
Output (dBm) | Sensitivity (dBm) | Budget (dB) |
Dynamic range (dB) | Connector |
ST/SR-1W2A2C-1 |
1 |
Multimode(Laser) 62.5 / 125 |
1300 nm |
-3 |
-24 |
21 |
24 |
ST |
ST/SR-1W2A2C-3 |
3 |
Singlemode(FP Laser) 62.5 / 125 |
1310 nm |
-3 |
-24 |
21 |
24 |
ST,FC |
