Signal Specifications
1 × Composite Video - 10 MHz, 10 Bit (U)
| Format | NTSC,PAL,SECAM |
|---|
| Voltage/Impedance | 1 Vp-p,75 Ω,1.5 Vp-p max. |
|---|
| Bandwidth | 5 Hz to 10 MHz @ -3 dB |
|---|
| Differential Gain | <0.6% |
|---|
| Differential Phase | <0.3° |
|---|
| SNR | >67 dB (weighted)* |
|---|
| Return Loss | >30 dB |
|---|
| Field Tilt | <0.5% |
|---|

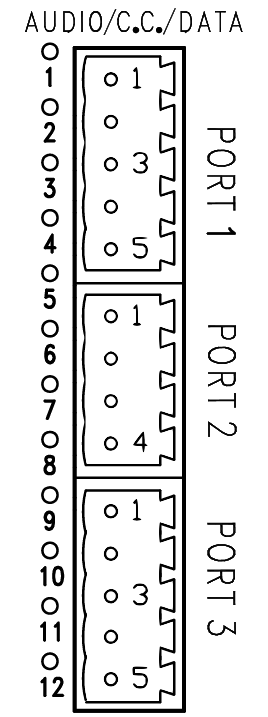

4 × RS-232D (D)
| Format | RS-232 |
|---|
| Data Rate | DC to 125 Kb/s |
|---|
| Bit Error Rate | 10-9* |
|---|
Indicators
Composite Video - 10 MHz, 10 Bit
| Bi-color | Video Present/Overload |
|---|
| Green | Sync. Present |
|---|
RS-232D
Physical
| Dimensions | 20 (W) x 127 (H) x 160 (D) mm (0.8 x 5.0 x 6.3 inch) |
|---|
| Weight | 450 gms (16 Oz) |
|---|
| No. of Slots | 2 |
|---|
Environmental
| Operating Temperature | -34°C to +70°C |
|---|
| Storage Temperature | -55°C to +80°C |
|---|
| Relative Humidity | 0 to 95% Non-condensing |
|---|
Quality
MTBF >170,000 hours @ Ground Fix 35 °C per MIL217F
